Split system "making Oasis everywhere" H-7

A standard brought to a technical ideal

21650 руб.
Retail shops
Web-Shops
Buy in Bulk

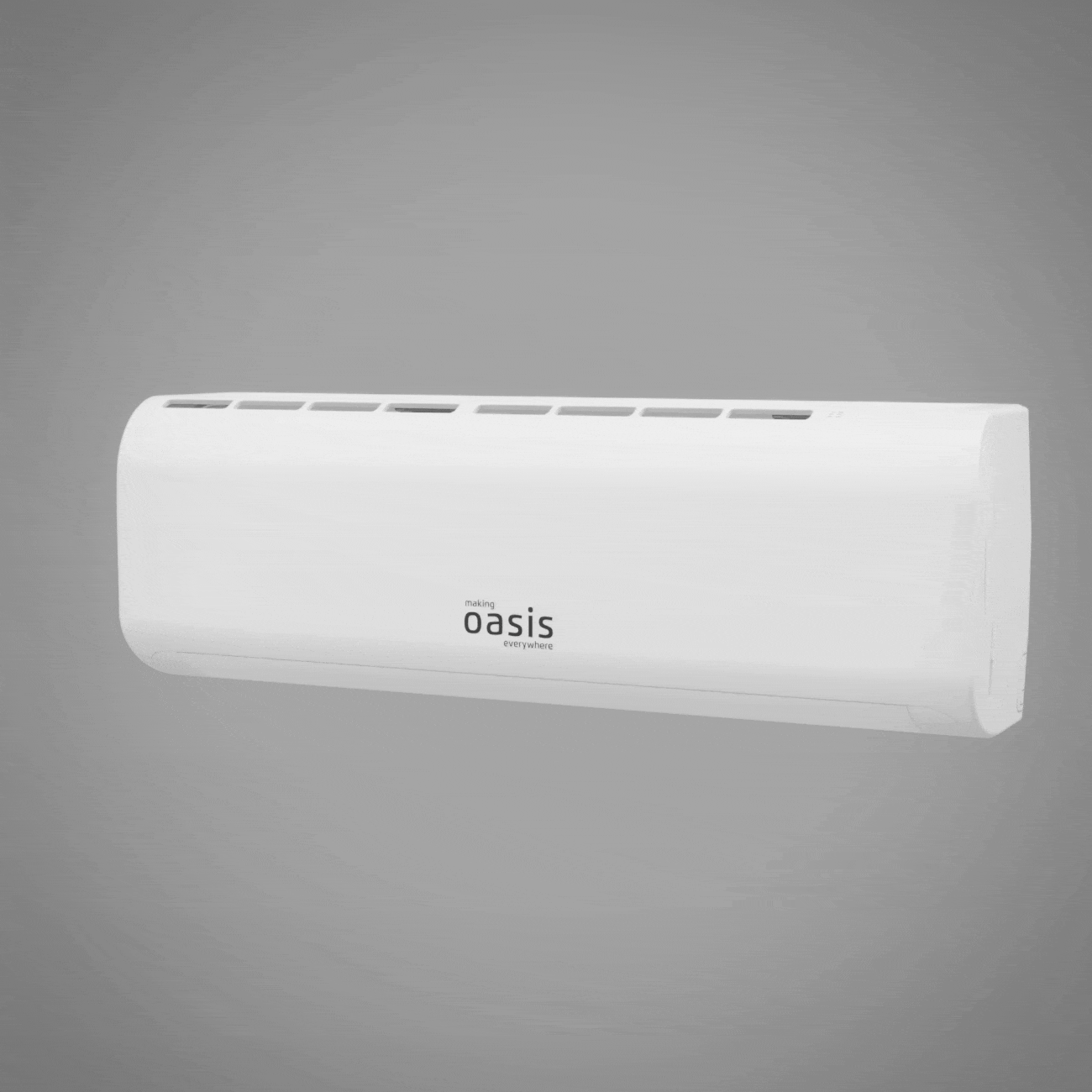

The "Oasis" H series split system is a modern air conditioning system that will help create a cozy microclimate in an apartment, office or private home. The design provides high power with almost no noise.

In winter, the split system can be used as an additional heat source due to the air heating mode. The blinds automatically regulate the air flow. Due to proper energy consumption, the device uses electricity sparingly. The DIMMER function turns off the backlight of the display so that it does not interfere at night. The remote control allows you to set up the device from anywhere in the room.

The advanced self-diagnosis system promptly signals deviations in the operation of the split system. Environmentally friendly R32 freon, which meets all European standards, is used for cooling.



  • image description The polypropylene filter guarantees high filtration and protects the internal parts from contamination.
  • image description High–performance GREE (LANDA) and Toshiba (GMCC) compressors are a reliable guarantee of efficient operation and safety
  • image description The removable and washable panel optimizes the operation of the device.
  • image description Energy efficiency class A – rational consumption of electricity in all modes
  • image description SLEEP function – automatic air temperature control for night sleep
  • image description DIMMER function – adjusting the backlight of the indoor unit
  • image description The SMART function is an intelligent mode that detects all sources of heat and cold to achieve an optimal indoor climate.
  • image description SUPER function – extremely fast heating or cooling
  • image description Automatic restart – resuming operation after a power failure in the previous mode
  • image description Wide operating temperature range – high performance at low and high outdoor temperatures
  • image description 24-hour timer – the ability to activate the device's on and off mode for 24 hours without user intervention
  • image description Air flow direction adjustment – effective control of the intensity and movement of the air flow
  • image description Refrigerant R32 – freon with improved environmental safety indicators
  • image description The I FEEL function automatically detects and adjusts the temperature in the area where the remote control is located.
  • image description Self–diagnosis - monitoring of functioning parameters and error notification

Оптовые закупки для профессионалов рынка

  • Индивидуальная система скидок
  • Наличие всего ассортимента на складе
  • Оперативная доставка в любой регион РФ, даже минимальной партии
  • Гарантия и сервис производителя
  • Оптимальное соотношение цены и качества
  • Более 500 сервисных центров обслуживания по всей стране
  • Система онлайн заказов продукции, позволяющая вам оперативно делать заказы в любое удобное время
MODEL   H-7
Rated cooling capacity BTU/hr 8000
W 2343
Rated heating capacity BTU/hr 8400
W 2460
Energy Consumption Class (SEER/SCOP)   A
Energy Efficiency coefficient for cooling (EER)   3,21
Efficiency factor for heating (COP)   3,61
Indoor unit noise level dB (A) 30
Noise level of the outdoor unit dB (A) 44
ELECTRICAL DATA
Power consumption Cooling, W 730
Heating, W 682
Rated current Cooling, W 3,4
Heating, A 3,1
VENTILATION SYSTEM
Indoor air circulation m³/h 500
Outdoor air circulation m³/h 1600
Type of refrigerant   R32
Volume of refrigerant filling g 370
Additional refrigerant volume g/m 20
Operating voltage, frequency, number of phases V/Hz/F 220–240/50/1
Compressor type   Rotary
Compressor Brand   LANDA (GREE)
Compressor power W 655
Compressor LRA A 3
Suction pressure (minimum) Mpa 1,6
Discharge pressure Mpa 4,15
Type of throttling device   Capillary tube
Type of expansion device   Capillary tube
Type of anti-corrosion coating (Blue Fin / Golden Fin)   Blue Fin
OTHER PARAMETERS
Connecting tubes gas, inch 3/8
liquid, inch 1/4
drainage, mm 15,4
Maximum length of the copper pipe of the route m 15
Maximum height range of the route m 8
Minimum length of the copper pipe of the route m 3
Maximum room area m² 24
Length of the power cord m 1,2
Ambient temperature range during cooling ℃ From 19 to 43
Ambient temperature range during heating ℃ From –7 to 24
Net weight, kg Indoor unit 7,15
External unit 21,4
Gross weight, kg Indoor unit 8,45
External unit 23
